Mounting the Lightbits Volume and Running FIO

Confirming the Client Connection to Lightbits

To confirm the client is connected to Lightbits, do the following:

1. Log into the client VM.
2. Run sudo -i to grant root access.
3. Check which NVME device path-naming the Lightbits volume is using:

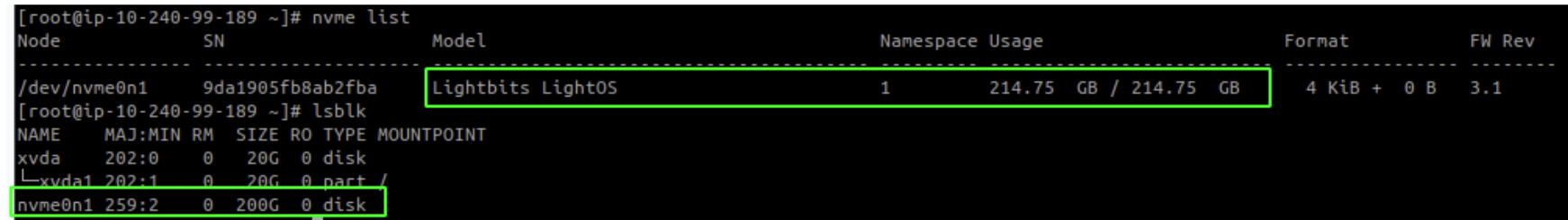

nvme list

The path to look for is the one under Node, with the model Lightbits LightOS - as shown in the example above.

Next, review your connected block devices to see the newly connected NVMe/TCP block device, using the Linux lsblk command.

lsblk

Sample Output

root@rack08-server56:~ lsblk

NAME                               MAJ:MIN RM   SIZE RO TYPE MOUNTPOINT

nvme0n1                            259:1    0    200G  0 disk

nvme0n2                            259:3    0    25G  0 disk

sda                                  8:0    0 223.6G  0 disk

|-sda2                               8:2    0     1G  0 part /boot

|-sda3                               8:3    0 222.6G  0 part

| |-inaugurator--v2-osmosis--cache 253:1    0    30G  0 lvm

| |-inaugurator--v2-root           253:2    0 147.7G  0 lvm  /

| -inaugurator--v2-swap            253:0    0     8G  0 lvm  [SWAP]

-sda1                                8:1    0     2M  0 part

A new nvme0n1 block device with 200 GB of storage is identified and available.

To determine which node in the cluster is the primary and which is secondary for this block device, enter the nvme list-subsys command with the block device name.

nvme list-subsys /dev/nvme0n1

root@rack08-server56:~ nvme list-subsys /dev/nvme0n1

nvme-subsys0 - NQN=nqn.2016-01.com.lightbitslabs:uuid:66ee2ad7-8602-49ed-9b82-0c85af8da36d

​

 +- nvme0 tcp traddr=172.16.231.70 trsvcid=4420 live optimized

 +- nvme1 tcp traddr=172.16.231.71 trsvcid=4420 live

 +- nvme2 tcp traddr=172.16.231.72 trsvcid=4420 live

Mounting the Lightbits Volume to a Local Folder

Once the volume has been attached to the client using nvme-connect, this block-storage volume can be formatted with mkfs and used as a mounted filesystem on the client:

1. Format the device and create the file system:

mkfs.ext4 /dev/nvme0n1

2. Create a directory to mount the volume under /mnt:

mkdir /mnt/vol1

3. Mount the file system to dir:

mount /dev/nvme0n1 /mnt/vol1

4. Verify that the local folder is mounted with the Lightbits volume:

df -h

Run FIO

1. Download and install FIO:

sudo apt install -y fio

2. Run a basic performance test:

sudo fio --filename=/mnt/vol1 --runtime=120 --time_based --name=test --ioengine=libaio --rw=randrw --bs=4k --direct=1 --rwmixread=0 --numjobs=4 --iodepth=16 --group_reporting --size=1GiB
