Live Migration

Live migrating an instance means moving its virtual machine to a different OpenStack Compute server while the instance continues running.

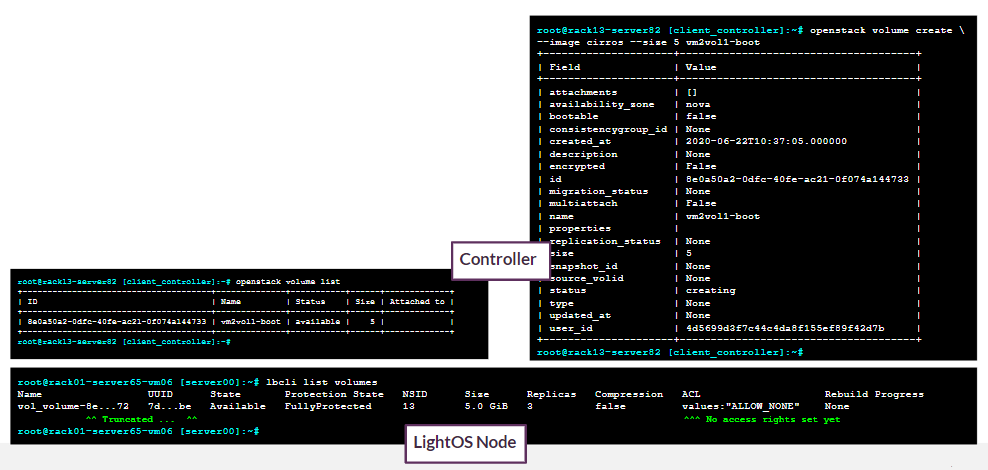

Live migration involves first creating a volume from an image through Cinder. This is visible on both Lightbits and OpenStack.

openstack volume create --image cirros --size 5 vm2vo11-boot

openstack volume list

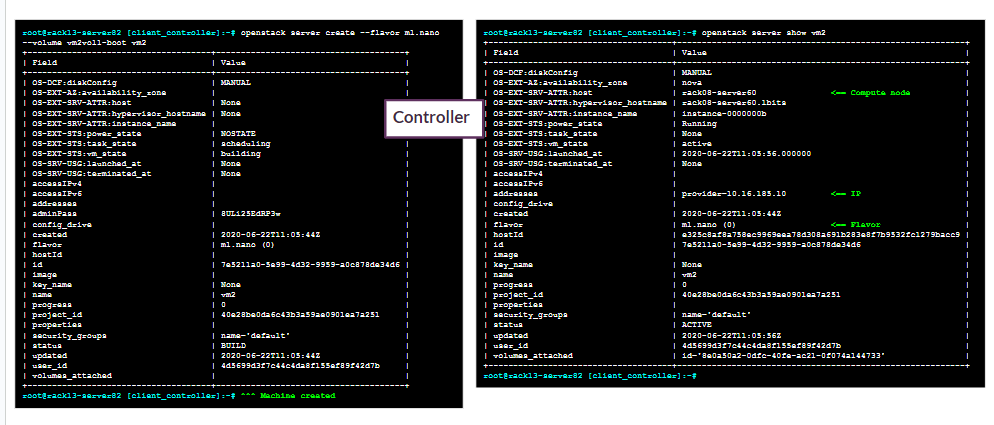

Server creation for live migration is illustrated below.

openstack server create --flavor m1.nano --volume vm2vol1-boot vm2

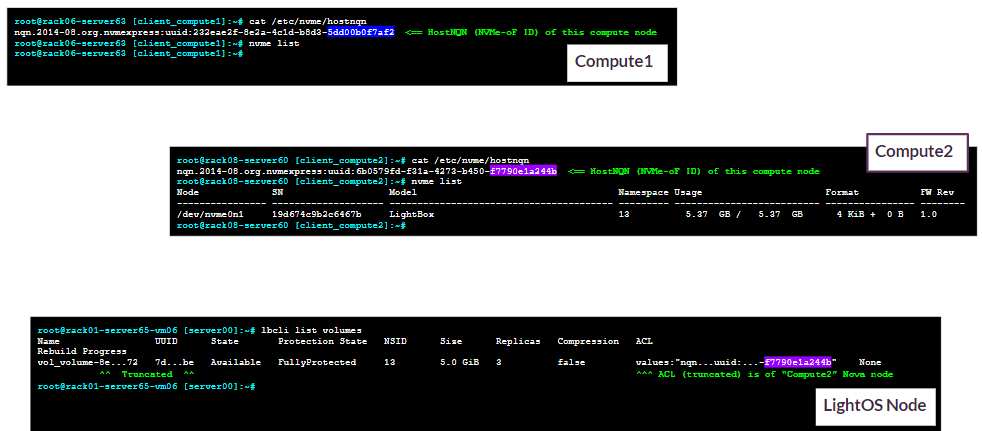

Before the migration, NVMe/TCP volumes will be as follows:

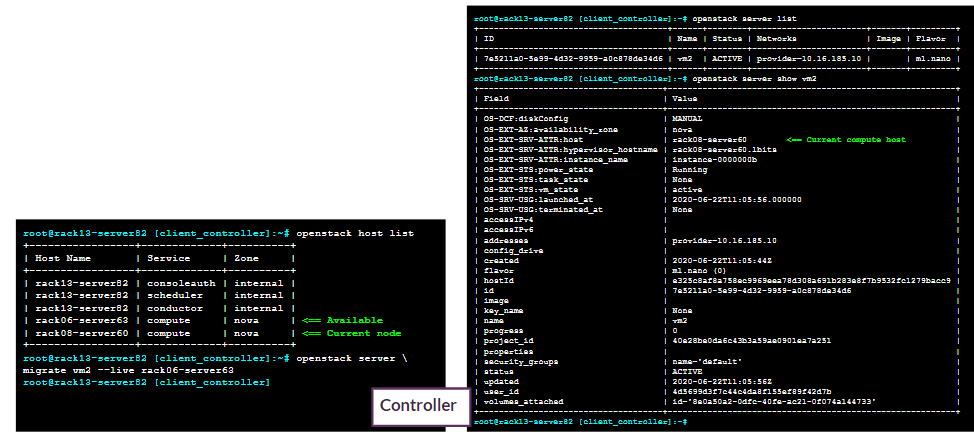

The live migration itself includes the following:

• Identifying the current compute host.
• Identifying other compute hosts.
• Migrating to other compute hosts.

openstack server list

openstack host list

openstack server migrate vm2 --live rack06-server60

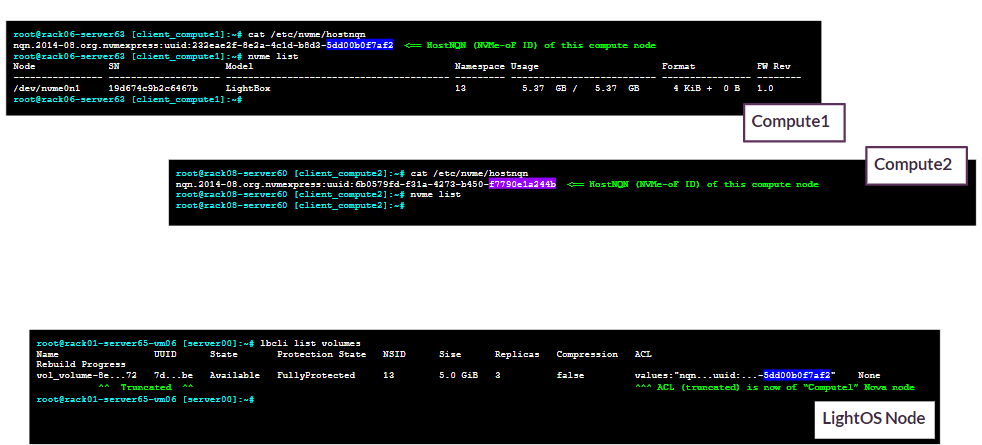

After the migration, the NVMe/TCP volumes look as follows:

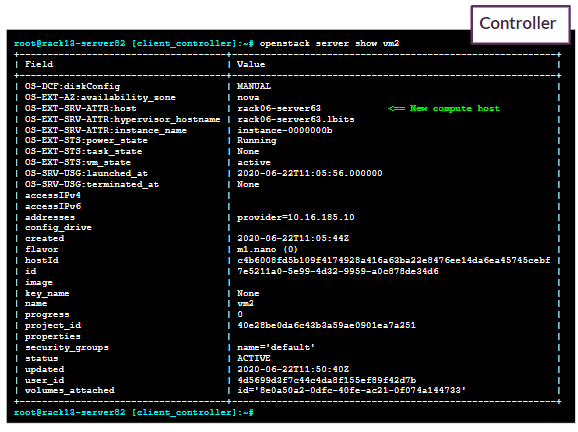

Finally, the live migration is verified, with a new compute host reported:

openstack server show vm2
